OAuth 2.0 Configuration Examples

Below are examples of what information are expected for a Microsoft OAuth provider.

Client ID	11re338f-3443-4c96-3td7-81e5c986a0e9	Can be found on the Overview page of the App registered
Client Secret	xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx	Can be created under Certificates & secrets of the App registered
Authorization Endpoint	https://login.microsoftonline.com/6fe2c527-u776-4v20-kqq8-a63670f1043r/oauth2/v2.0/authorize	Can be found under the Endpoints menu found on the Overview page of the App registered
Token Endpoint	https://login.microsoftonline.com/6fe2c527-u776-4v20-kqq8-a63670f1043r/oauth2/v2.0/token	Can be found under the Endpoints menu found on the Overview page of the App registered
User Info Endpoint	https://graph.microsoft.com/oidc/userinfo	Generic endpoint for all registered App.
Scopes	openid, email, offline_access	Required scopes that need to be included in the configuration.
Discovery Endpoint	https://login.microsoftonline.com/6fe2c527-u776-4v20-kqq8-a63670f1043r//v2.0/.well-known/openid-configuration	Can be found under the Endpoints menu found on the Overview page of the App registered

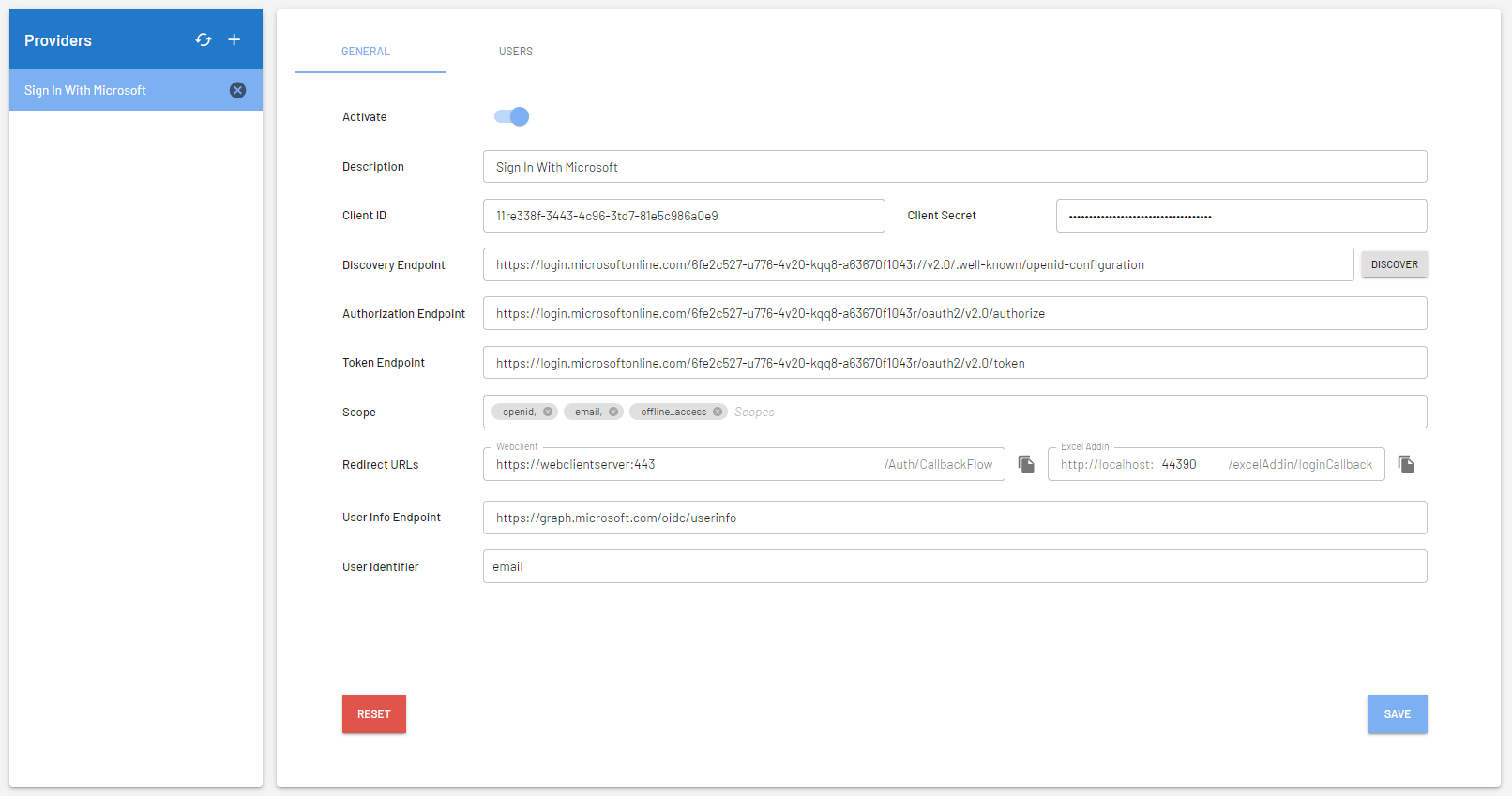

The following screen shot is an example of where to set the values that were retrieved from the Microsoft provider.

The following screen shot is an example of how to map the Web Client user to their Microsoft account.

Below are examples of what information are expected for a Microsoft OAuth provider.

Client ID	343312345323453-t3424qpj03iie75appleqasff42ksq322.apps.googleusercontent.com	Can be found on the Overview page of the App registered
Client Secret	xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx	Can be created under Certificates & secrets of the App registered
Authorization Endpoint	https://accounts.google.com/o/oauth2/v2/auth	Generic endpoint that can be found under Authenticating the User
Token Endpoint	https://oauth2.googleapis.com/token	Generic endpoint that can be found under Authenticating the User
User Info Endpoint	https://openidconnect.googleapis.com/v1/userinfo	Generic endpoint for all registered App
Scopes	openid, email	Required scopes that need to be included in the configuration
Discovery Endpoint	https://accounts.google.com/.well-known/openid-configuration	Generic endpoint that can be found under Discovery document

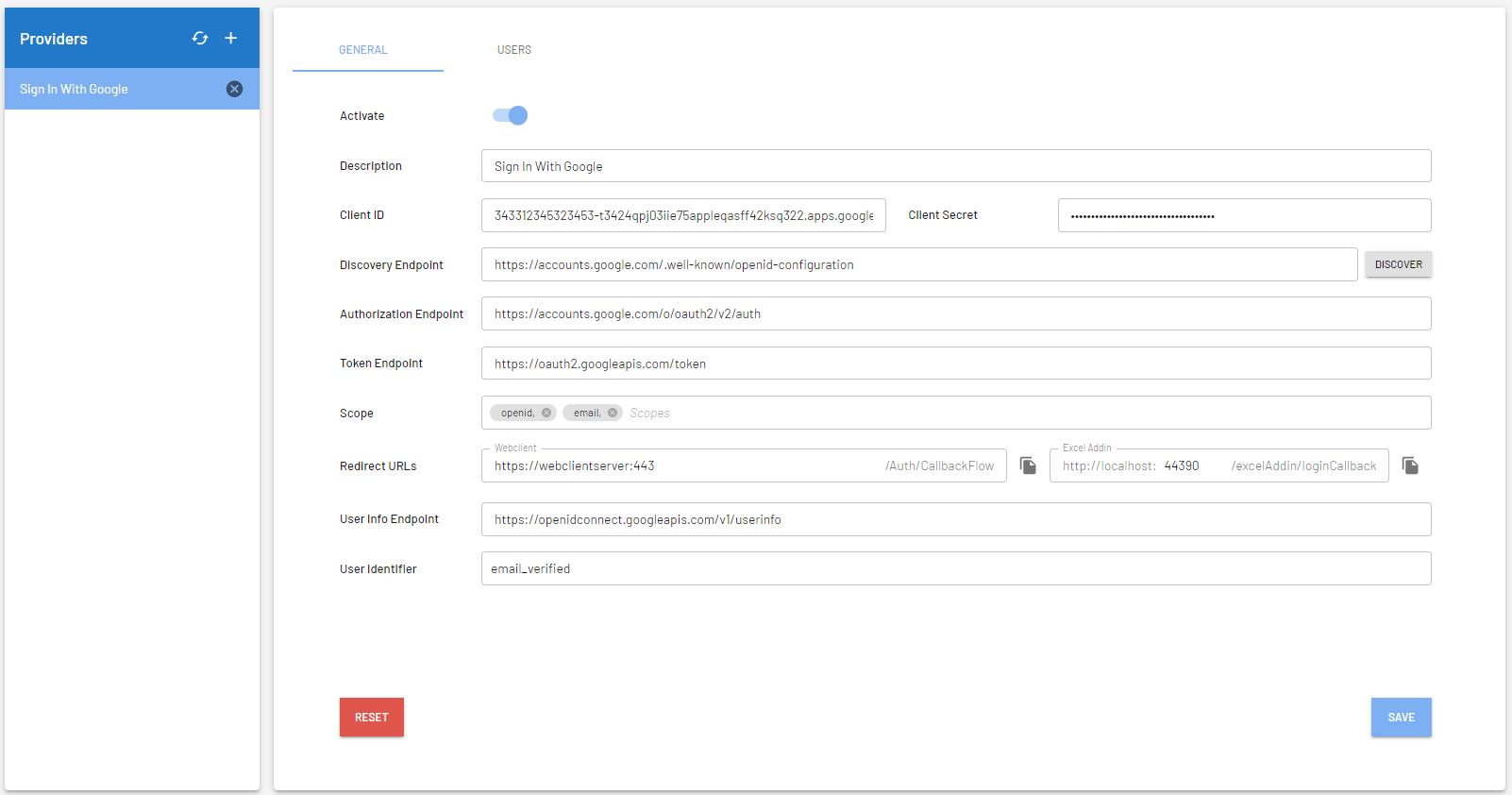

The following screen shot is an example of where to set the values that were retrieved from the Google provider.

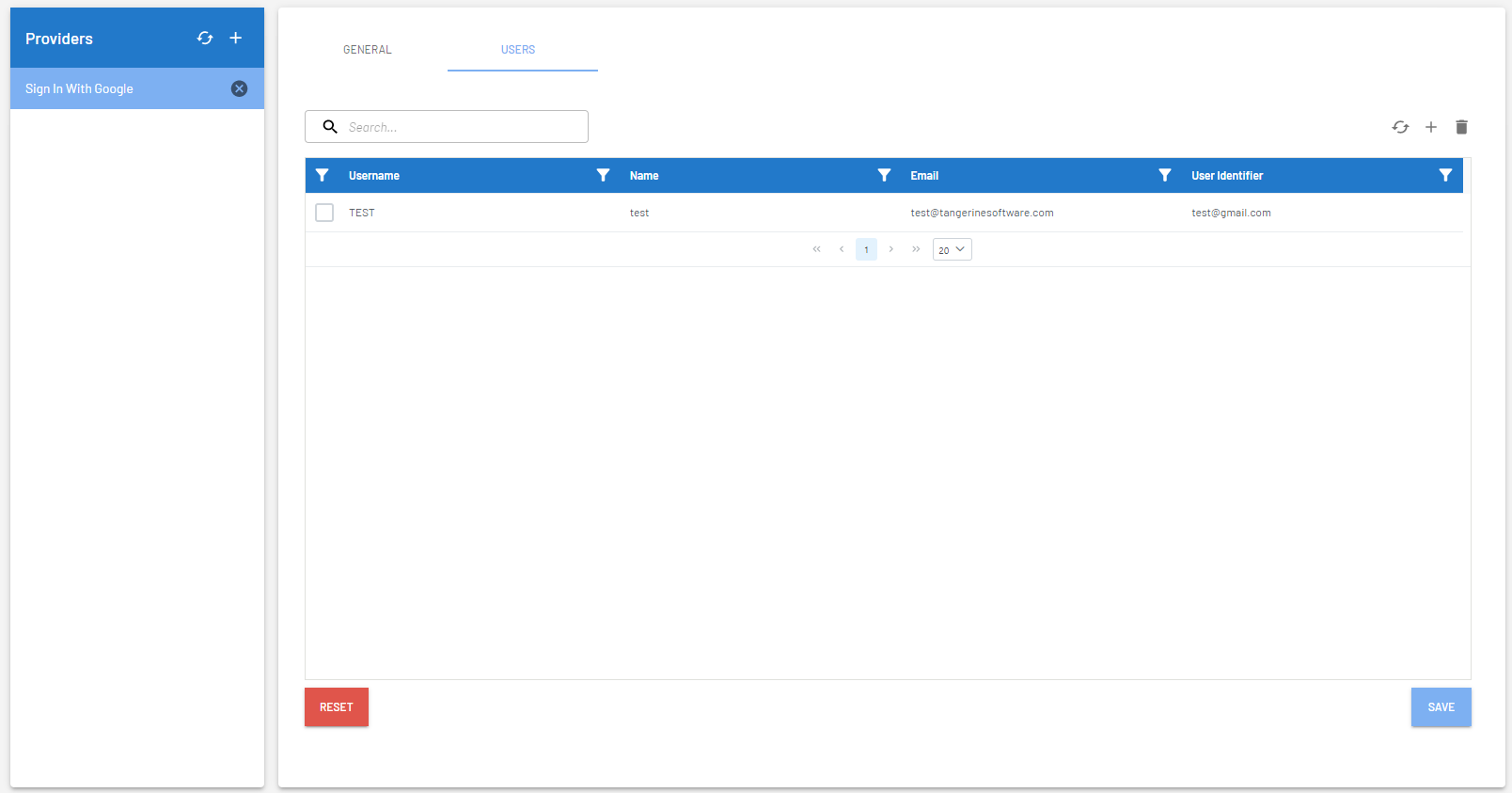

The following screen shot is an example of how to map the Web Client user to their Google account.
