Groups

Data can be grouped using the Groups section in the Organizer for one or several columns.

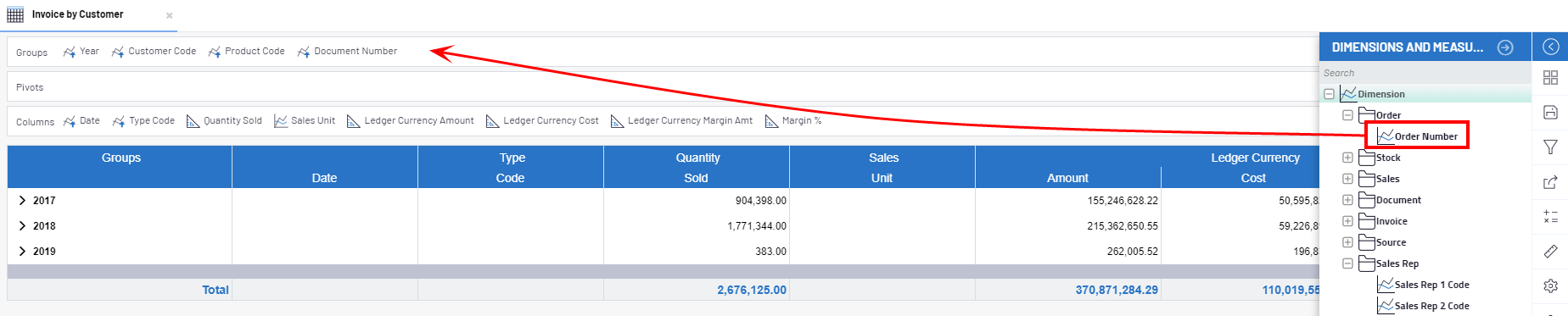

  • For instance, drag the Dimension from the folder you are interested in to place it into the Groups section.
    Tip

    The same operation can be achieved by clicking on and selecting Groups then Add.

    Example

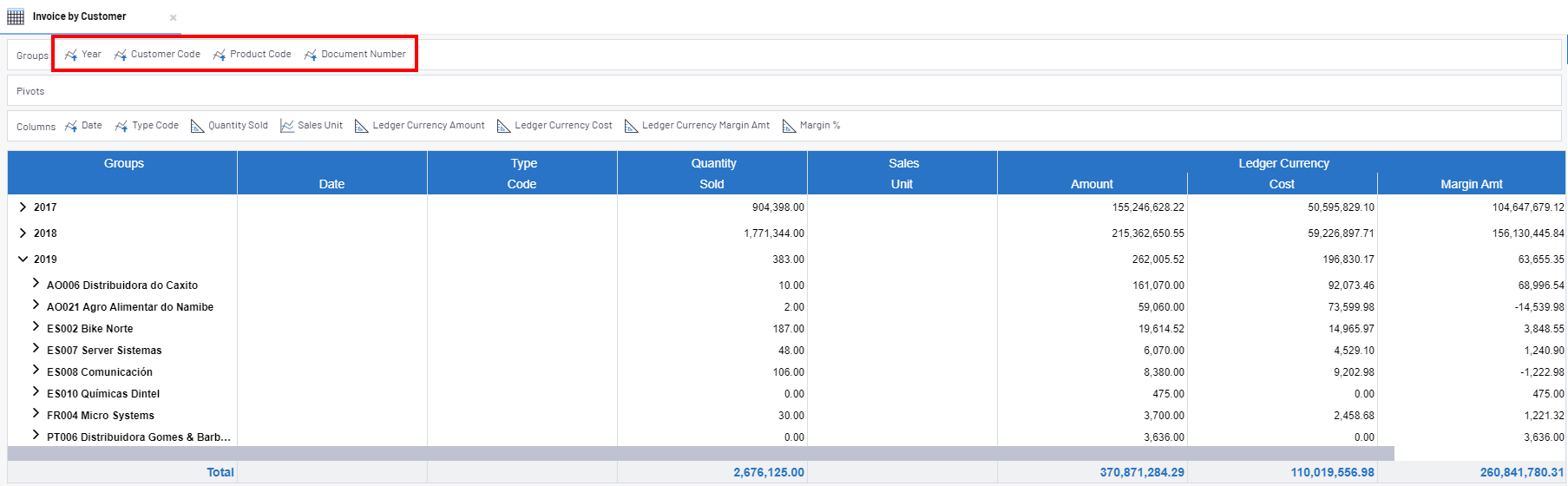

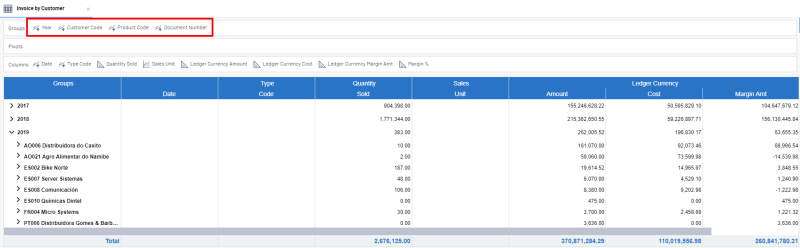

    Here the worksheet is grouped by Year, Customer Code, Product Code and Document Number:

Once grouped, a summary row is added for each value of each Dimension in the grouping section. All grouped rows include summary values of specific columns (i.e. totals of Dollar, Margin and Cost).

Note

Grouping is not available for all columns, rather, only for those that have been configured within the Data Model definition as Dimensions.

If a worksheet is grouped by multiple columns, the grouping is based on the order in which related columns appear in the Groups section, beginning from left to right.

Example

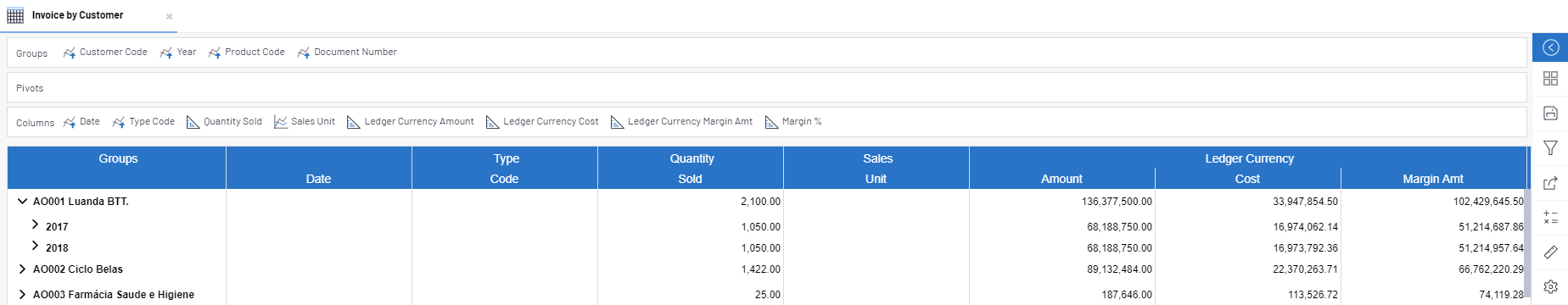

In order to group a worksheet by Customer Code and then by Year, the Customer Code needs to be moved to the column header in the Groups section before the Year column (illustrated below):

Tip

To ungroup data for a specific column move the column name from the Groups section back to the column header area.

Refer to Expanding / Drilling Down for more details about showing and hiding grouped data.
